Model

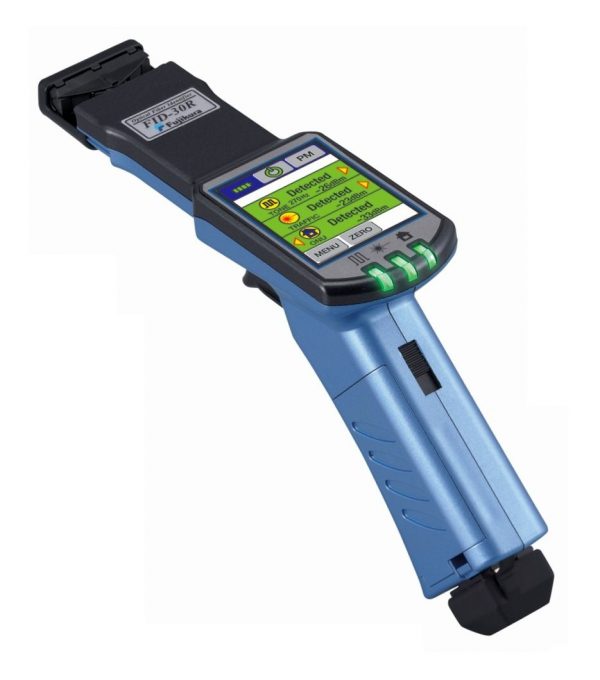

FID-30R(With Power Meter)
FID-31R(Only Identifier)

Fiber type

Single mode fiber

Sheath / Count

0.25mm coating, Ribbon fiber up to 12-fiber, or

Fiber cord: 1.1mm, 1.5mm, 1.7mm, 2.0mm, or 3.0mm

Wavelengh range

900 to 1700nm

Detectable light signals

Traffic signal(CW), Light sigal with modulated

tones at 270Hz, 1kHz or 2kHz

(square wave 50±10% duty cycle)

Shock Resistance

76cm(30") drop

Operating conditions

-10 to +50°C, 0 to 95% RH

Storage conditions

-20 to +60°C, 0 to 95% RH

Power supply

1.2 to 1.5V DC with two AA batteries

Battery Life

Approximaely 8 Hours by alkaline batteries at room temperature

Dimension & Weight

50(W) x 115(H) x 212(D) mm , 230g including battery

Power meter(FID-30R only)

Wavelength response

1310nm, 1490nm, 1550nm

Detectable light signal

Traffic signal(CW), Light sigal with modulatedtones at 270Hz, 1kHz or 2kHz(square wave 50±10% duty cycle)

Detector Sensitivity

+10 to -60dBm at modulated tone+10 to -40dBm at CW light (traffic signal)

Accuracy

Within +/- 0.3dB at room temperature
