광케이블 코닝(Corning) 옥외형 멀티모드(OM4) 4코어 (길이 1km)

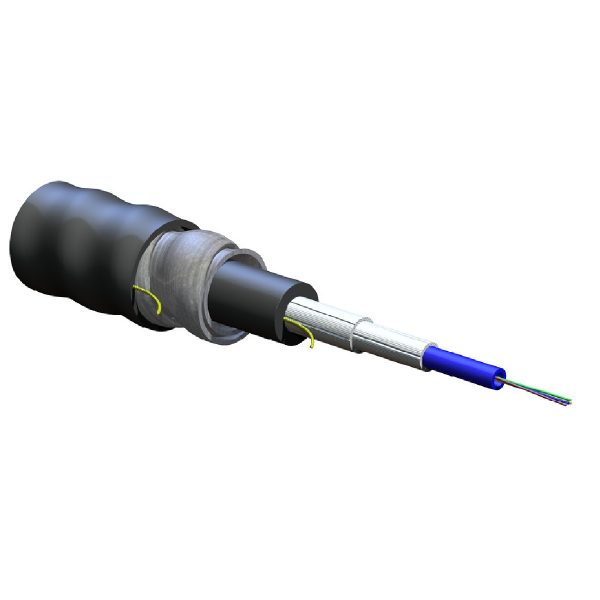

Corning FREEDM® LST™ gel-free interlocking armored cables are flame-retardant, indoor/outdoor, riser-rated cables designed for interbuilding and intrabuilding backbones in aerial, duct and riser applications. Encased in a spirally wrapped, aluminum interlocking armor for ruggedness and superior crush resistance, these cables are ideal for industrial and heavy traffic areas and installations requiring extra protection for optical cables and for high-fiber-count trunking applications in areas with limited conduit or vault space. The riser rating precludes the need for a transition splice when entering the building.
These cables are protected against water penetration by innovative waterblocking tapes and yarns that swell to absorb water without the use of messy gels to provide more efficient and craft-friendly cable preparation. This waterblocking technology makes cable access easier and simplifies the use of buffer tube fan-out kits. The buffer tubes and fibers in each tube are color coded for quick, easy identification. The SZ-stranded, loose tube design isolates fibers from installation, environmental rigors and allows for easy mid-span access.

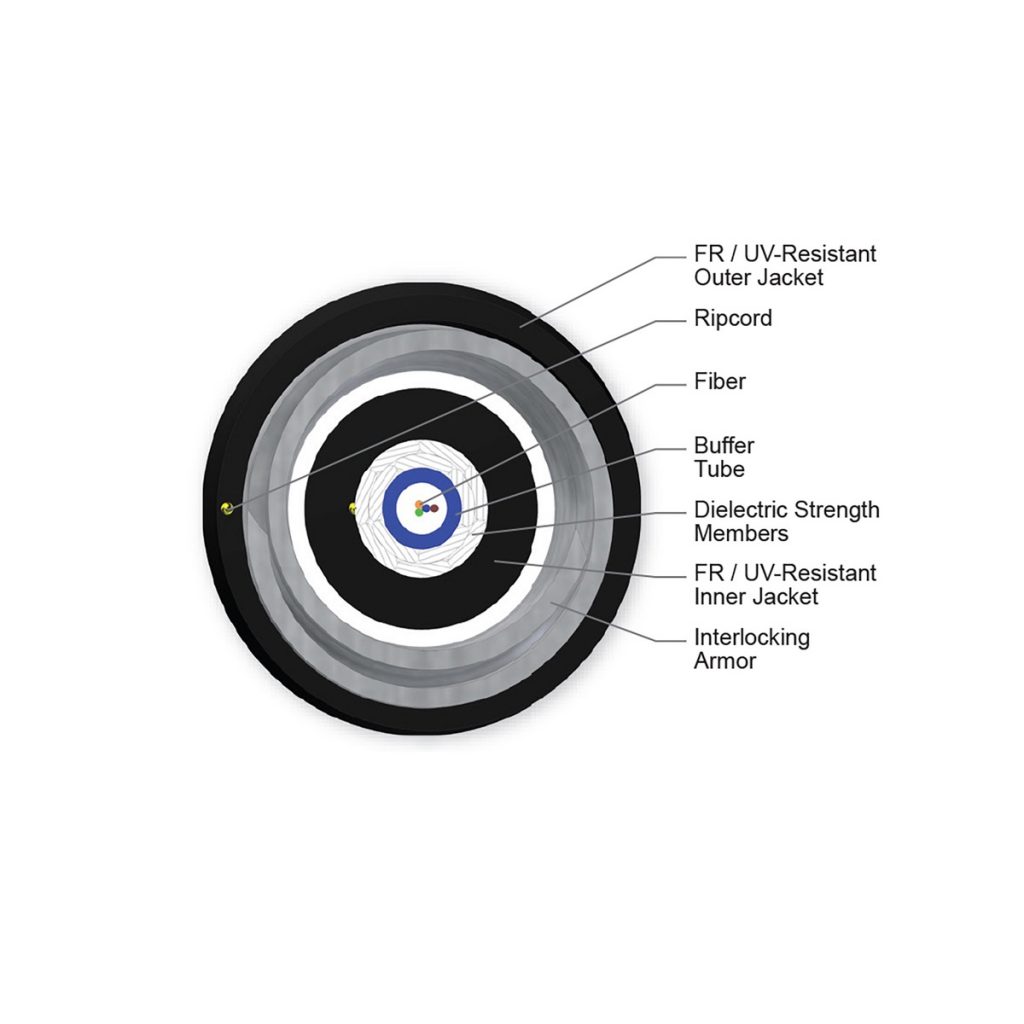

Cable Design
Fiber Count
4
Number of Ripcords
1
Outer Jacket Color
Black
Outer Jacket Material
Flame-Retardant, UV-Resistant
Tensile Strength Elements and/or Armoring - Layer 1
Water-swellable dielectric strength members
Tensile Strength Elements and/or Armoring - Layer 2
Interlocking Armor
Inner Jacket Material
Flame-Retardant, UV-Resistant
Number of Active Tubes
1
Number of Tube Positions
1
Fiber Coloring
Blue, Orange, Green, Brown
Fibers per Tube
4
General Specifications
Environment
Indoor/Outdoor
Cable Type
Loose Tube
Product Type
Interlocking Armor
Fiber Category
50 µm MM (OM4)
Flame Rating
Riser (OFCR)
Application
Aerial , Direct Buried , Duct , General Purpose Horizontal , Vertical Riser
Standards
RoHS
Free of hazardous substances according to RoHS 2011/65/EU
Approvals and Listings
National Electrical Code® (NEC®) OFCR, CSA OFC FT-4
Common Installations
Outdoor aerial and duct, indoor vertical riser and general purpose horizontal according to National Electrical Code® (NEC®) Article 770
Design and Test Criteria
ANSI/ICEA S-104-696
Environmental Conditions
Temperature Range, Installation
-10 °C - 60 °C (14 °F - 140 °F)
Temperature Range, Operation
-40 °C - 70 °C (-40 °F - 158 °F)
Temperature Range, Storage
-40 °C - 70 °C (-40 °F - 158 °F)
Mechanical Characteristics
Max. Tensile Strength, Long-Term
400 N
Max. Tensile Strength, Short-Term
1,350 N
Nominal Outer Diameter
15 mm (0.59 in )
Min. Bend Radius Operation
150 mm (5.91 in)
Min. Bend Radius Installation
225 mm (8.86 in)
Optical Characteristics
Fiber Code
T
Fiber Type
Multimode
Performance Option Code
90
Fiber Core Diameter
50 µm
Minimum Effective Modal Bandwidth (EMB)
4700 MHz*km / -
Maximum Attenuation
3.0 dB/km / 1.0 dB/km
Min. Overfilled Launch (OFL) Bandwidth
3500 MHz*km / 500 MHz*km
Serial 1 Gigabit Ethernet
1100 MHz*km / 600 MHz*km
Serial 10 Gigabit Ethernet
550 MHz*km / -
Wavelengths
850 nm / 1300 nm
Fiber Category
OM4
