Description

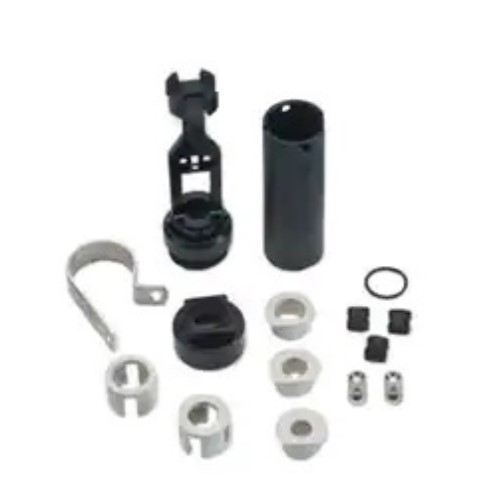

Corning Cable Systems Spider Fan-Out Kits provide a low-cost furcation option for multifiber cables. Offering the end user simple step-by-step assembly, these kits are designed for factory and field furcation of 4- to 24- fiber tight-buffered and loose tube non-armored cables into 2.0 mm or 2.9 mm jacketed legs and eliminate the need for patch panels. The spider fan-out kit furcates and provides pull-out protection for bare fibers (900 µm or 250 µm). The cable jacket is simply stripped back and the fibers are threaded into the modular 6-fiber fan-out inserts consisting of six 1 m lengths of fan-out tubing secured in a composite assembly.
Comprised of an inner tube, an aramid yarn strength member and an outer protective PVDF jacket, the fan-out tu bing provides three layers of protection. The fan-out insert then snaps into the main spider housing. When all the inserts have been loaded, the outer housing is installed to complete the assembly.

Features
Designed for factory and field furcation - Eliminates need for patch panel
Snap together fan out insert, easy installation
Dielectric/high-strength, composite material - rugged durability
Three-layer protective tubing - fiber protection
Specification Description
Environment: Indoor
Fanout Type: Spider
Product Type (FOJP): Fan-Out Kits
Furcation Length (Metric): 146 mm
Furcation Length (US): 5.75 in
Max_ cable outer diameter (Fan-Out Kit) (Metric): 15.7 mm
Max_ cable outer diameter (Fan-Out Kit) (US): 0.62 in
Min_ cable outer diameter (Metric): 8.6 mm
Min_ cable outer diameter (US): 0.34 in
Outer Diameter (Fan-Out Kit) (Metric): 28 mm
Outer Diameter (Fan-Out Kit) (US): 1.1 in

Tech Info
Free of hazardous substances according to RoHS 2002/95/EG

Specifications:
Fiber Type: BREAKOUT KITS
Type: FIBER
UNSPSC Code: 43223300
